Cisco WS-C2960X-48TD-L 48-Port Gigabit Ethernet Switch

Model: WS-C2960X-48TD-L Catalyst 2960-X Switch
Detail: Catalyst 2960-X 48 GigE, 2 x 10G SFP+, LAN Base

Description of Cisco WS-C2960X-48TD-L

Cisco Catalyst 2960X-48TD-L LAN Base stackable Layer 2 switch provides enterprise-class access for campus and branch applications. It is comprised of 48 Ethernet 10/100/1000 ports and 2 x 10G SFP+ uplink interfaces.

Categories: ,

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

Quick Specs of Cisco WS-C2960X-48TD-L

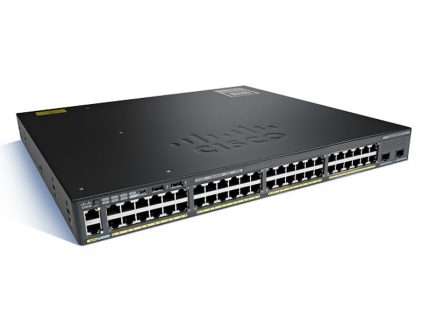

Figure 1 shows the front view of the Cisco 2960X-48TD-L switch.



Table 1 shows the Quick Spec of the Cisco 2960X-48TD-L switch.

Product Code WS-C2960X-48TD-L
Enclosure Type Rack-mountable – 1U
Feature Set LAN Base
Uplink Interfaces 2 x 10G SFP+
Ports 48 x Ethernet 10/100/1000 Gigabit ports
Maximum stacking number 8
Stack bandwidth 80G
Forwarding Bandwidth 108Gbps
Switching Bandwidth 216Gbps
RAM 512MB
Flash Memory 128MB
Dimensions 44.5 cm x 27.9 cm x 4.5 cm
Package Weight 9.19 Kg

Product Details of Cisco WS-C2960X-48TD-L

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48TD-L switch.



Note:

① Ethernet management port                                              ⑥ SFP module ports

② Mode button                                                                        ⑦ 48 x 10/100/1000 ports

③ Switch LEDs                                                                        ⑧ CONSOLE LED

④ USB mini-Type B (console) port                                      ⑨ MGMT LED

⑤ USB Type A ports                                                               ⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

Figure 3 shows the back panel of the Cisco Catalyst 2960X-48TD-L switch.



Note:

① FlexStack-Plus module slot and cover                         ③ RPS Connector

② Fan Exhaust                                                                      ④ AC power connector

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.



WS-C2960X-48TD-L Specification

General
model info: WS-2960X-48TD-L
enclosure type Rack-mountable – 1U
Ports 48 x 10/100/1000 + 2 x 10G SFP+
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power None
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number 8
Stack Bandwidth 80G
Forwarding Performance 130.9Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 512 MB
Flash Memory 128 MB
Status Indicators Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable Optional
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.049KVA
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 11 Inches (27.9 Cm)
Height 1.75 Inches (4.5 cm)
Package Weight 20.26 Pounds (9.19Kg)
Weight 9.6 Pounds (4.3Kg)
Rack Mounting Kit optional
MTBF in hours 445,460
Compliant Standards
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p CoS Prioritization
  • IEEE 802.1Q VLAN
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3ad
  • IEEE 802.3af and IEEE 802.3at
  • IEEE 802.3ah (100BASE-X single/multimode fiber only)
  • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p CoS Prioritization
  • IEEE 802.1Q VLAN
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3ad
  • IEEE 802.3af and IEEE 802.3at
  • IEEE 802.3ah (100BASE-X single/multimode fiber only)
  • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
System software / license
System software IOS LAN BASE
license NERGY-MGT-100-K9, EW-DO-100-DE
features

● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax

Network security
  • SSH, SSL and SCP
  • RADIUS and TACACS+
  • SNMPv3 crypto
  • 802.1x
  • 802.1x Accounting / MIB
  • 802.1x w/ port security
  • 802.1x w/Voice VLAN
  • 802.1x Guest VLAN
  • 802.1x VLAN assignment
  • 802.1x MAC-Auth Bypass
  • BPDU/Root Guard
  • Port Security
  • Private VALN Edge
  • Storm Control
  • Block unknown unicast and multicast
  • IGMP Snooping
  • IGMP Filter/Throttle
Management and Troubleshooting
  • Auto-MDOX
  • TDR
  • UDLD
  • IP SLA Responder
  • layer 2 / IP Traceroute
  • SPAN
  • RSPAN
  • Express Setup
  • Device Manager
  • Cisco Network Assistant
  • Smartports + Advisor
  • Troubleshooting Advisor
  • Drag-and-drop Cisco IOS Upgrade
  • IP Address DHCP
  • Autoinstall with saved configuration
  • Configuration Replace
  • DHCP Auto Image Upgrade
  • DHCP Port Based Allocation
  • Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF
Short-term exception at sea level* 23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)* 23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)* 23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF
Storage temperature up to 15,000 feet (4573 m) -13º to 158ºF
Operating altitude Up to 10,000 feet
Storage altitude Up to 13,000 feet
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
