Model: C1000-8FP-E-2G-L – Cisco Catalyst 1000 Series Switches
Detail: 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS
Description of Cisco C1000-8FP-E-2G-L
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Table 1 shows the Quick Specs.
|
Product Code |
C1000-8FP-E-2G-L |
| Description | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
| Gigabit Ethernet ports | 8 |
| Uplink interfaces | 2 SFP/ RJ-45 combo |
| PoE+power budget | 120W |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 10.56 x 7.28 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 10 Gbps |
| Switching bandwidth | 20 Gbps |
| Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
The Cisco C1000-8FP-E-2G-L Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Description
8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS
Gigabit Ethernet ports
8
Uplink interfaces
2 SFP/ RJ-45 combo
PoE+power budget
120W
Fanless
Y
Dimensions (WxDxH in inches)
10.56 x 7.28 x 1.73
Console ports
RJ-45 Ethernet
1
USB mini-B
1
USB-A port for storage and Bluetooth console
1
Memory and processor
CPU
ARM v7 800 MHz
DRAM
512 MB
Flash memory
256 MB
Performance
Forwarding bandwidth
10 Gbps
Switching bandwidth
20 Gbps
Forwarding rate(64—byte L3 packets)
14.88 Mpps
Unicast MAC addresses
16000
IPv4 unicast direct routes
542
IPv4 unicast indirect routes
256
IPv6 unicast direct routes
414
IPv6 unicast indirect routes
128
IPv4 static routes
16
IPv6 static routes
16
IPv4 multicast routes and IGMP groups
1024
IPv6 multicast groups
1024
IPv4/MAC security ACEs
600
IPv6 security ACEs
600
Maximum active VLANs
256
VLAN IDs available
4094
Maximum STP instances
64
Maximum SPAN sessions
4
MTU-L3 packet
9198 bytes
Jumbo Ethernet frame
10,240 bytes
Dying Gasp
Yes
MTBF in hours (data)
2,171,669
MTBF in hours (PoE)
1,786,412, 1,706,649 (External PS)
MTBF in hours (Full PoE)
1,706,649
Environmental
Operating temperature Seal level
-5 to 50 deg C*
Up to 5,000ft (1500 m)
-5 to 45 deg C
Upto 10,000 (3000 m)
-5 to 40 deg C
Operating altitude
10,000 ft (3,000m)
Operating relative humidity
5% to 90% at 40C
Storage temperature
-13 to 158F (-25 to 70C)
Storage altitude
15,000 ft (4500m)
Storage relative humidit
5% to 95% at 65C
*Note:
50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F)
Safety and compliance
Safety
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions
47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity
EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco
Common Language Equipment Identifier (CLEI) code
U.S. government certifications
TBD
Connectors and interfaces
Ethernet interfaces
* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
* 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
* 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
* 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs
* Per-port status: link integrity, disabled, activity
* System status: system
Console cables
* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
* CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power
* Use the supplied AC power cord to connect the AC power connector to an AC power outlet
* Models have external power supply
Model: C1000-8P-2G-L - Cisco Catalyst 1000 Series Switches Detail: 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

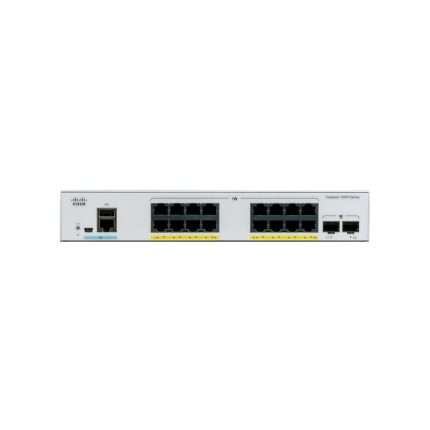

Model: C1000-16P-E-2G-L - Cisco Catalyst 1000 Series Switches Detail: 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks with external PS
