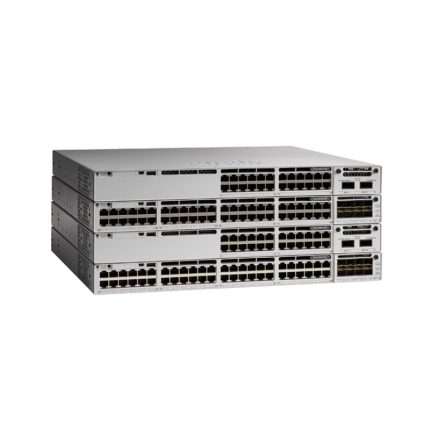

Cisco C9300L-48T-4G-A Switch – High-Performance Networking Solution

Model: C9300L-48T-4G-A – Cisco Catalyst 9300L Switches
Detail: Catalyst 9300 48-port fixed uplinks data only, 4X1G uplinks, Network Advantage

Description of Cisco C9300L-48T-4G-A

Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.

Categories: ,

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

Features of Cisco C9300L-48T-4G-A

  • Wi-Fi 6 (802.11ax) technology: Offers up to 4x faster speeds than Wi-Fi 5 (802.11ac) for a smoother wireless experience.
  • Dual-band concurrent operation: Supports both 2.4 GHz and 5 GHz bands to handle more devices and applications simultaneously.
  • High speed and capacity: Delivers a maximum aggregate data rate of 1.77 Gbps to power even the most demanding tasks.
  • Improved signal coverage: Features internal antennas for wide Wi-Fi coverage and strong signal penetration.
  • Gigabit Ethernet port: Provides a wired connection for backhaul or failover.
  • Advanced security features: Supports WPA3 encryption, secure boot, and rogue AP detection for enhanced network protection.
  • Simplified management: Integrates seamlessly with Aruba Central for easy configuration, monitoring, and troubleshooting.

Cisco Catalyst 9300L Switches Specification

Designed to replace Catalyst 3850
Supported IOS Network Advantage, Network Essentials
Network modules options Fixed Modules
Stack Technology StackWise-320
Stacking bandwidth 320 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries
IPv6 routing entries 16,000
Multicast routing scale 8,000
QoS scale entries 5,120
ACL scale entries 5,120
Packet buffer per SKU 16 MB buffer for 24 and 48 port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
Flash 16 GB
VLAN IDs 4094
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9198 bytes
Switching capacity 56 Gbps – 176 Gbps
Forwarding rate 41.66 Mpps – 130.95 Mpps
